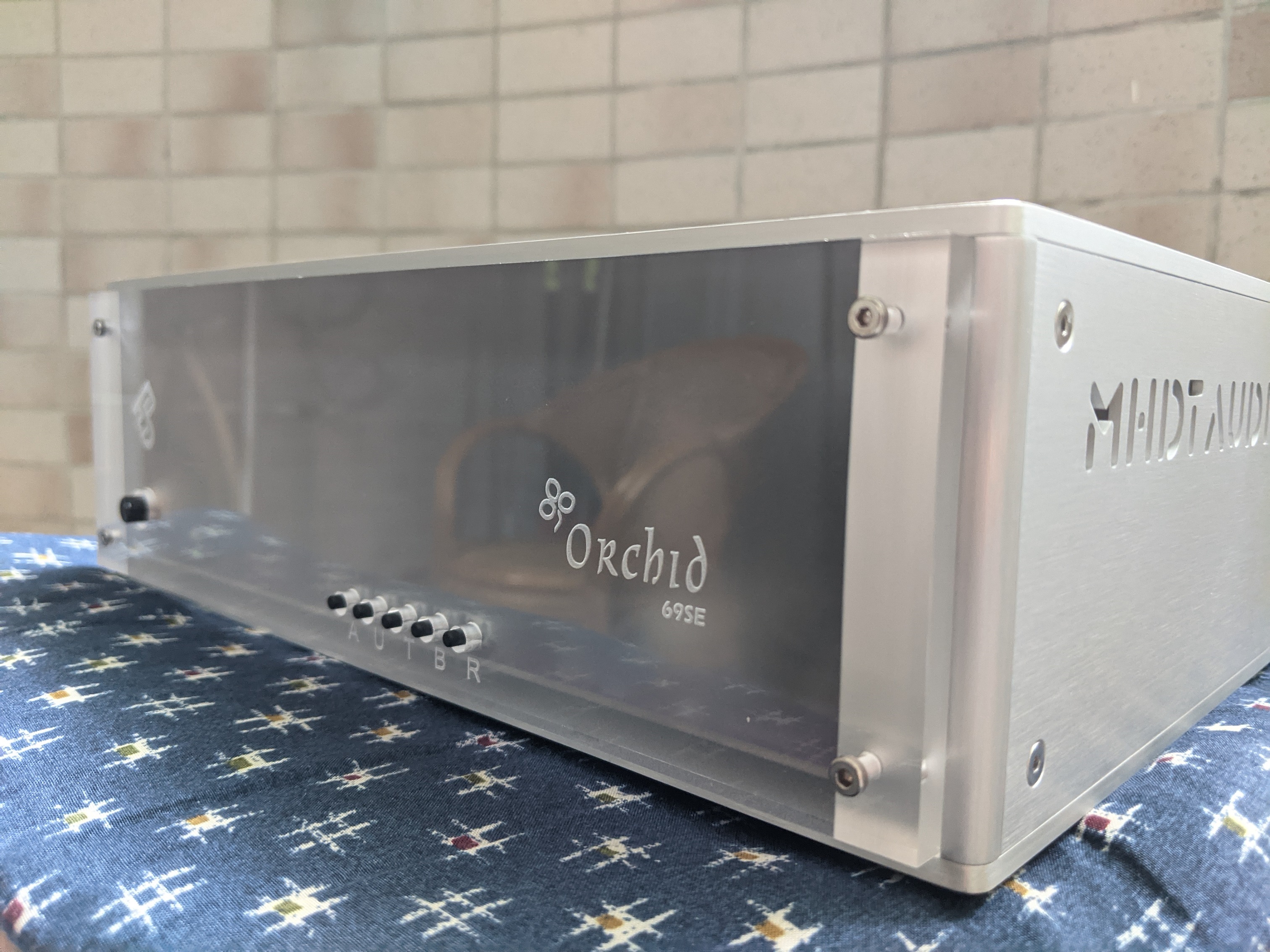

Orchid 69SE


Orchid 69SE DAC is a non over-sampling, no digital filter, structured DAC.

This tends to produce most realistic and natural sound.

Orchid 69SE DAC is capable of up to 24bits/192kHz digital signal inputs yet remains driving legendary TDA541A R-2R digital to analog output.

Orchid 69SE configured to be 16 bits output.

The USB input section is in asynchronous operation.

Total five independent  digital inputs; AES/EBU, BNC, USB, RCA and Toslink.

The 5 digital inputs are independent to each other, only one among them will be active and is controlled by the tact switches located in front panel.



Tube buffered output, tube installed is Sovtek 6922 tube.

Tubes can be used: 6DJ8, 6922 tube families

100V, 115V, 215V, 230V power supply selectable from internal PCB pins setting


Available in silver cabinet only.

No powercord is included when ship out

Specifications:

Digital Receiver CS8416

D/A converter TDA541A

I/V stage: discrete ideal transistors (OPA861 used as transistor) , no feedback

Frequency response: 20 Hz to 20 kHz ( 2dB)

Output impedance:  32 ohms

Output level:  2.6 Vrms

 All inputs support 16/24 bits/ 32 kHz up to 192 kHz

Dimensions clear (W x D X H) 280 x 180 x 96 mm

Dimensions w/ socket (W x D X H) 280 x 200 x 96 mm



Weight 4.2 kg
