Voltage Settling


All Mhdt Labs products can be used in international voltage and frequency.

The default voltage setting when ship out is set up according to voltage in your country or as your request.   Check the bottom voltage tag when you receive the unit.

voltage tag in bottom plate


However, if you need to change voltage setting while moving your unit to other voltage country or traveling you can also manually change the voltage setting.

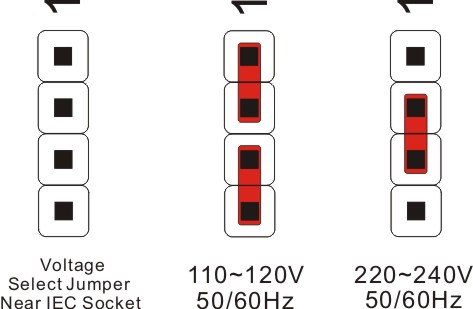

The voltage is set by a "select jumper pins" located on the PCB near the AC power inlet socket (IEC socket).  You have to open the top cover plate and find out this "select jumper pins" and set by jumper (like jumper in computer hard drive or main board).

¡@

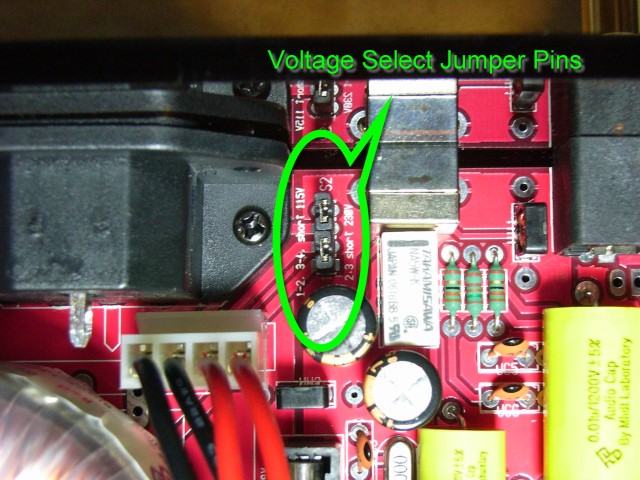

Paradisea (+)

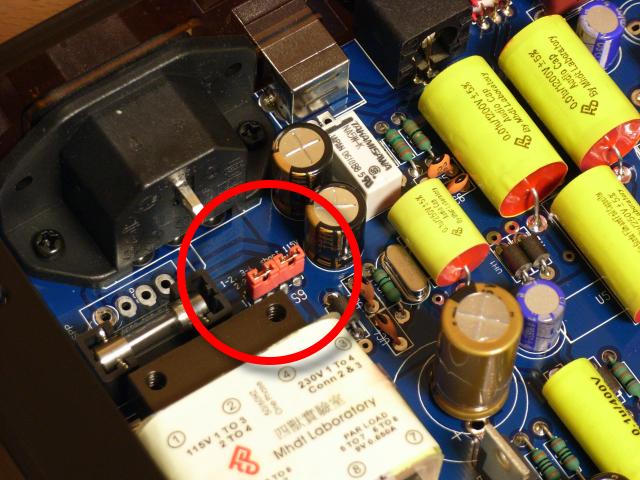

Constantine (+)

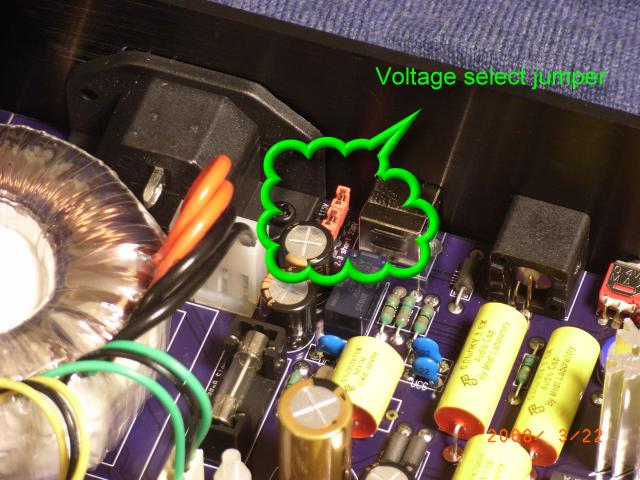

Havana
